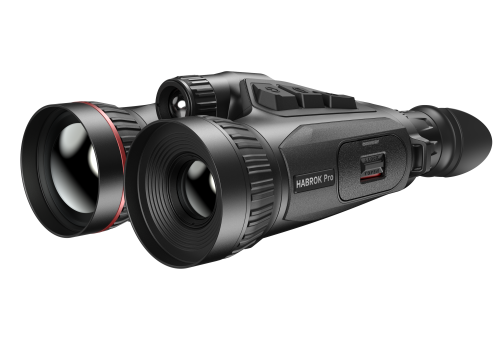

Lornetka termowizyjna HIKMICRO Habrok Pro HQ50LN LRF 940nm
Cena regularna:
towar niedostępny

Opis
Odkryj nową jakość obserwacji z lornetkami HIKMICRO HABROK PRO, które łączą w sobie funkcje detekcji termalnej i optyki dziennej. Te zaawansowane lornetki są idealnym rozwiązaniem dla myśliwych, przyrodników oraz specjalistów w dziedzinie bezpieczeństwa, oferując wszechstronność i niezawodność w każdych warunkach.
SPECYFIKACJA HX60L ORAZ HX60LN
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
1280 × 1024 |
|
Frame Rate |
25 Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 18 mK (@25°C, F# = 1.0) |
|
Lens (Focal Length) |
60 mm, F1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
3100 m |
|
Min. Focusing Distance |
3 m |
|
Magnification |
2.6× to 20× (7.7×) |
|
Field of View(H×V), |
14.6° × 8.8°/25.6 m × 15.4 m |
|
Optical Module |
|
|
Image Sensor |
1/1.8'' Progressive Scan CMOS |
|
Max. Resolution |
3840 × 2160 |
|
Focal Length |
60 mm, F2.2 |
|
Min. Working Distance |
3 m |
|
Focus Mode |
Focus Ring |
|
Magnification |
5.5× to 22.0× (4×) |
|
Field of View (H×V), Degrees/m @100 m |
7.3° × 4.1°/12.6 m × 7.2 m |
|
Smart IR |
Yes |
|
IR Illuminator Wavelength |
940 nm or 850 nm |
|
Viewing Range at Night |
350 m |
|
Replaceable IR Illuminator |
Yes |
|
Image Display |
|
|
Display |
0.49 inch, OLED, 1920 × 1080 |
|
Palettes |
Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Exit Pupil |
8 mm |
|
Eye Relief |
15 mm |
|
Diopter (Range) |
-5 D to +3 D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, warm |
|
Contrast Adjustment |
Yes |
|
Zoom Pro |
No |
|
Image Pro 2.0 |
Yes |
|
System |
|
|
Record Video |
Yes |
|
Capture Snapshot |
Yes |
|
Audio Recording |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hotspot |
Yes |
|
Hot Track |
Yes |
|
Digital Magnetic Compass |
Yes |
|
GPS |
Yes |
|
Local Album |
Yes |
|
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion Battery Pack |
|
Battery Operating Time |
9.5 h (25°C, with hotspot off, LRF on) |
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
640 × 512 |
|
Frame Rate |
50 Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 15 mK (@25°C), F# = 1.0 |
|
Lens (Focal Length) |
50 mm, F1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
2600 m |
|
Min. Focusing Distance |
5 m |
|
Magnification |
4.3× to 20.0× (4.6×) |
|
Field of View(H × V), Degrees/m @100 m |
8.8° × 5.3°/15.4 m × 9.3 m |
|
Optical Module |
|
|
Image Sensor |
1/1.8'' Progressive Scan CMOS |
|
Max. Resolution |
3840 × 2160 |
|
Focal Length |
60 mm, F2.2 |
|
Min. Working Distance |
3 m |
|
Focus Mode |
Focus Ring |
|
Magnification |
||
Field of View (H × V), Degrees/m @100 m |
7.3°× 4.1°/12.6 m × 7.2 m |
|
Smart IR |
Yes |
|
IR Illuminator Wavelength |
940 nm or 850 nm |
|
Viewing Range at Night |
350 m |
|
Replaceable IR Illuminator |
Yes |
|
Image Display |
|
|
Display |
0.49 inch, OLED, 1920 × 1080 |
|
Palettes |
Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Exit Pupil |
8 mm |
|
Eye Relief |
15 mm |
|
Diopter (Range) |
-5 D to +3 D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, warm |
|
Contrast Adjustment |
Yes |
|
Zoom Pro |
Yes |
|
Image Pro 2.0 |
Yes |
|
System |
|
|
Record Video |
Yes |
|
Capture Snapshot |
Yes |
|
Audio Recording |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hotspot |
Yes |
|
Hot Track |
Yes |
|
Digital Magnetic Compass |
Yes |
|
GPS |
Yes |
|
Local Album |
Yes |
|
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion Battery Pack |
|
Battery Operating Time |
10.5 h (25°C, with hotspot off, LRF and Zoom Pro on) |
|
Type-C Power Supply |
5 V/9 V DC, 3 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
142.9 mm × 79.7 mm × 230.5 mm (5.6" × 3.1" × 9.1") |
|
Weight |
975 g with battery pack |
|
Working Temperature |
-30°C to +55°C |
|
Interpupillary Adjustment Range |
60 mm to 74 mm |
|
Mounting Adapter |
1/4“-20-UNC |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905 nm |
|
Max. Measuring Range |
1000 m |
|
Measurement Accuracy |
±1 m |
|
Min. Measuring Range |
10 m |
SPECYFIKACJA HQ50L ORAZ HQ50LN
Thermal Module |
|
|
Image Sensor |
VOx Uncooled Focal Plane Arrays |
|
Max. Resolution |
640 × 512 |
|
Frame Rate |
50 Hz |
|
Pixel Interval |
12 μm |
|
Response Waveband |
8 μm to 14 μm |
|
NETD |
Less than 15 mK (@25°C), F#=1.0 |
|
Lens (Focal Length) |
50 mm, F1.0 |
|
Focus Mode |
Focus Ring |
|
Detection Range |
2600 m |
|
Min. Focusing Distance |
5 m |
|
Magnification |
4.3× to 20.0× (4.6×) |
|
Field of View(H × V), Degrees/m @100 m |
8.8° × 5.3°/15.4 m × 9.3 m |
|
Optical Module |
|
|
Image Sensor |
1/1.8'' Progressive Scan CMOS |
|
Max. Resolution |
3840 × 2160 |
|
Focal Length |
60 mm, F2.2 |
|
Min. Working Distance |
3 m |
|
Focus Mode |
Focus Ring |
|
Magnification |
5.5× to 22.0× (4×) |
|
Field of View (H × V), Degrees/m @100 m |
7.3°× 4.1°/12.6 m × 7.2 m |
|
Smart IR |
Yes |
|
IR Illuminator Wavelength |
850 nm |
|
Viewing Range at Night |
400 m |
|
Replaceable IR Illuminator |
Yes |
|
Image Display |
|
|
Display |
0.49 inch, OLED, 1920 × 1080 |
|
Palettes |
Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
|
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
|
Exit Pupil |
8 mm |
|
Eye Relief |
15 mm |
|
Diopter (Range) |
-5 D to +3 D |
|
Brightness Adjustment |
Yes |
|
Tone Adjustment |
Cold, warm |
|
Contrast Adjustment |
Yes |
|
Zoom Pro |
Yes |
|
Image Pro 2.0 |
Yes |
|
System |
|
|
Record Video |
Yes |
|
Capture Snapshot |
Yes |
|
Audio Recording |
Yes |
|
Standby Mode |
Yes |
|
Storage |
Built-in EMMC (64 GB) |
|
PIP |
Yes |
|
Hotspot |
Yes |
|
Hot Track |
Yes |
|
Digital Magnetic Compass |
Yes |
|
GPS |
Yes |
|
Local Album |
Yes |
|
Power Supply |
|
|
Battery Type |
Replaceable and Rechargeable Li-ion Battery Pack |
|
Battery Operating Time |
10.5 h (25°C, with hotspot off, LRF and Zoom Pro on) |
|
Type-C Power Supply |
5 V/9 V DC, 3 A |
|
General |
|
|
Protection Level |
IP67 |
|
Dimension |
142.9 mm × 79.7 mm × 230.5 mm (5.6" × 3.1" × 9.1") |
|
Weight |
975 g with battery pack |
|
Working Temperature |
-30°C to +55°C |
|
Interpupillary Adjustment Range |
60 mm to 74 mm |
|
Mounting Adapter |
1/4“-20-UNC |
|
Laser Rangefinder |
|
|
Safety Class for Laser |
Class 1 |
|
Wavelength |
905 nm |
|
Max. Measuring Range |
1000 m |
|
Measurement Accuracy |
±1 m |
|
Min. Measuring Range |
10 m |
